Drawings
*Coating Codes (substitute for “#” in the part number).
Other available finishes may not be listed.
- [blank] – Unfinished Plain
- 1 – Zinc/Yellow per ASTM F1941 - Fe/Zn 5C
- 2 – Zinc/Clear per ASTM F1941 - Fe/Zn 5AT (RoHS)
- 3 – Cadmium/Clear per ASTM F1941 - Fe/Cd 5A
- 4 – Phosphate/Oil per ASTM F 1137 Grade D
- C – Commercial Cadmium/Clear
- Y – Commercial Zinc/Yellow
- Z – Commercial Zinc/Clear (RoHS)
Notes - Drawing-No-RFNF:
- #10, #12, ¾ & 1” parts are Aztech-specified; others are compliant per ASME B18.2.2
- Proof Load and material per ASME B18.16.6
- Threads as specified per ASME B1.1
- Parts listed are not all stocked—contact Aztech sales for lead times
- Latest standard revisions were used on the date of print release
Notes - Drawing-No-RFNG:
- Dimensions of the 7/8 and 1 inch sizes are Aztech-specified; others per ASME B18.16.6 (supersedes IFI 100/107) without a locking feature
- Performance and material characteristics are compliant with ASME B18.16.6 for Grade C or G.
Contact Us
Grade-8 Free Spinning Flange Nut Type
Product Description

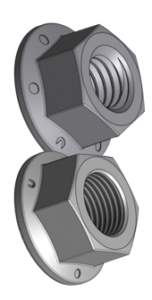

This common flange shaped has a hex drive nut and washer combination. Free Spinning Flange are manufactured to the high standards required of all Aztech products and have no locking feature. Where the assembly can tolerate it, the Free Spinning Flange can provide a cost savings over locking flange products.
Applications
The Free Spinning Flange is for applications where there is no vibration in the assembly or is typically so low that the assembly will stay secure during normal operation of the assembly. The Free Spinning Flange nut is ideal when the assemby consists of thin materials, slots or non-precision oversize holes.
Available Sizes
| Nut Type | Grade | Lock | Size | Thread | Availability |
|---|---|---|---|---|---|
| Free Spin Flange | 5 | None | #10 - 3/4" | Coarse & Fine, 2B | Request a Quote |
| Large Free Spin | 5 | None | 1/4" - 1/2" | Coarse & Fine, 2B | Request a Quote |
| Super Free Spin | 5 | None | 1/4" - 3/8" | Coarse, 2B | Request a Quote |
| Free Spin Flange | 8 | None | 1/4" - 1" | Coarse & Fine, 2B | Request a Quote |
